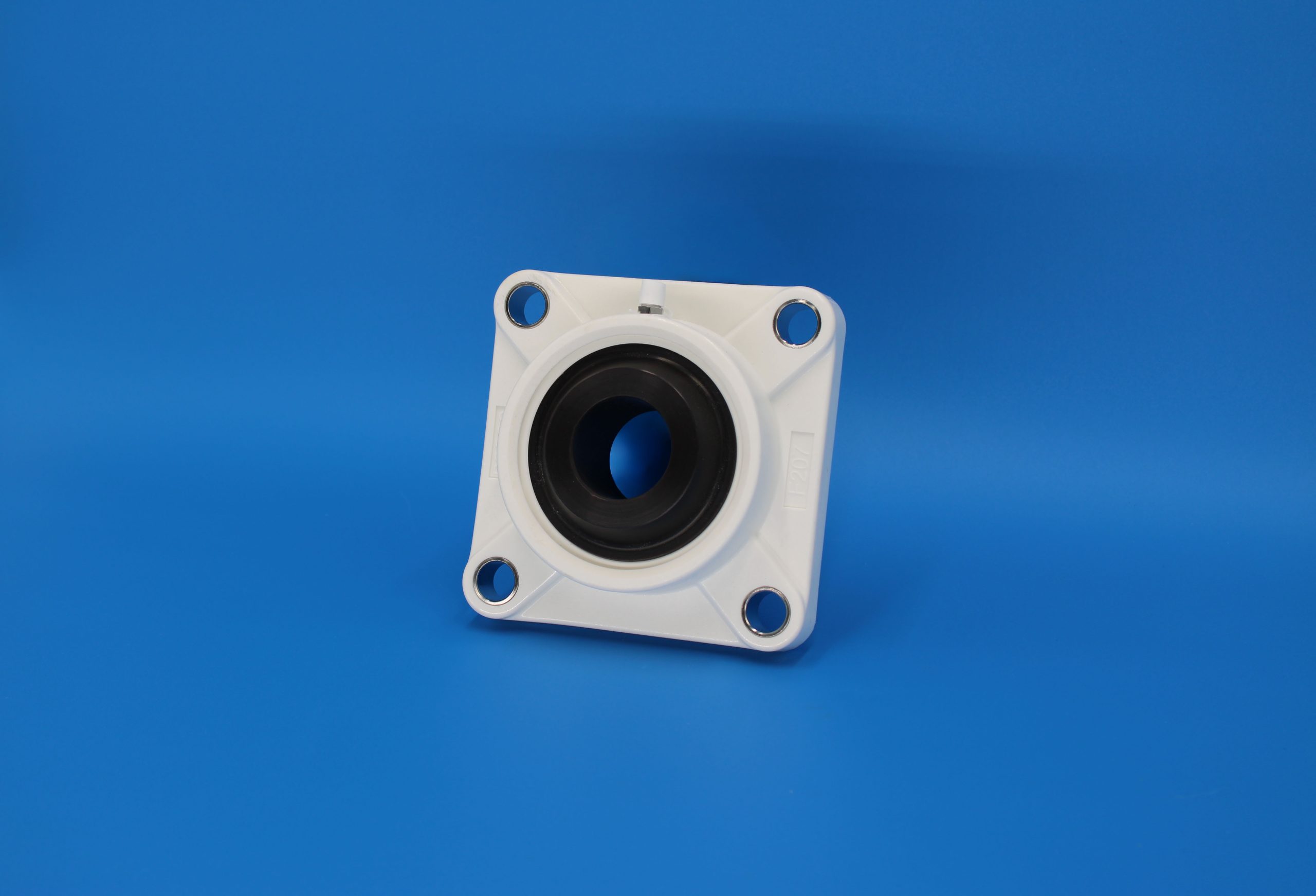

4 Bolt Side Flange
| Part No. | Series | L | Hole Size | ML | MH | CH | Shaft Size | T | Material Code | Color | Type | Material | D | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PP4FM24 | 208 | 2.00" | .56" | 5.13" | 4.02" | N/A | 1-1/2” | .63" | P | GREY | 3 Bolt Side Flange | PLUS | N/A | |
| PP4FM23 | 207 | 1.75" | .55" | 4.59" | 3.63" | N/A | 1-7/16” | .63" | P | GREY | 3 Bolt Side Flange | PLUS | N/A | |
| PP4FM20L | 207 | 1.75" | .55" | 4.59" | 3.63" | N/A | 1-1/4” | .63" | P | GREY | 3 Bolt Side Flange | PLUS | N/A | |
| PP4FM20 | 206 | 1.59" | .47" | 4.25" | 3.27" | N/A | 1-1/4” | .56" | P | GREY | 3 Bolt Side Flange | PLUS | N/A | |
| PP4FM19 | 206 | 1.59" | .47" | 4.25" | 3.27" | N/A | 1-3/16” | .56" | P | GREY | 3 Bolt Side Flange | PLUS | N/A | |
| PP4FM16 | 205 | 1.41" | .47" | 3.75" | 2.75" | N/A | 1” | .56" | P | GREY | 3 Bolt Side Flange | PLUS | N/A | |
| PP4FM12 | 204 | 1.31" | .47" | 3.38" | 2.52" | N/A | 3/4” | .47" | P | GREY | 3 Bolt Side Flange | PLUS | N/A | |
| PSS4FM24 | 208 | 2.00" | .56" | 5.13" | 4.02" | N/A | 1-1/2” | .63" | SS | Steel | 3 Bolt Side Flange | Stainless Steel | N/A | |
| PSS4FM23 | 207 | 1.75" | .55" | 4.59" | 3.63" | N/A | 1-7/16” | .63" | SS | Steel | 3 Bolt Side Flange | Stainless Steel | N/A | |
| PSS4FM20L | 207 | 1.75" | .55" | 4.59" | 3.63" | N/A | 1-1/4” | .63" | SS | Steel | 3 Bolt Side Flange | Stainless Steel | N/A | |
| PSS4FM20 | 206 | 1.59" | .47" | 4.25" | 3.27" | N/A | 1-1/4” | .56" | SS | Steel | 3 Bolt Side Flange | Stainless Steel | N/A | |
| PSS4FM19 | 206 | 1.59" | .47" | 4.25" | 3.27" | N/A | 1-3/16” | .56" | SS | Steel | 3 Bolt Side Flange | Stainless Steel | N/A | |
| PSS4FM16 | 205 | 1.41" | .47" | 3.75" | 2.75" | N/A | 1” | .56" | SS | Steel | 3 Bolt Side Flange | Stainless Steel | N/A | |
| PSS4FM12 | 204 | 1.31" | .47" | 3.38" | 2.52" | N/A | 3/4” | .47" | SS | Steel | 3 Bolt Side Flange | Stainless Steel | N/A |
