Guide Angles

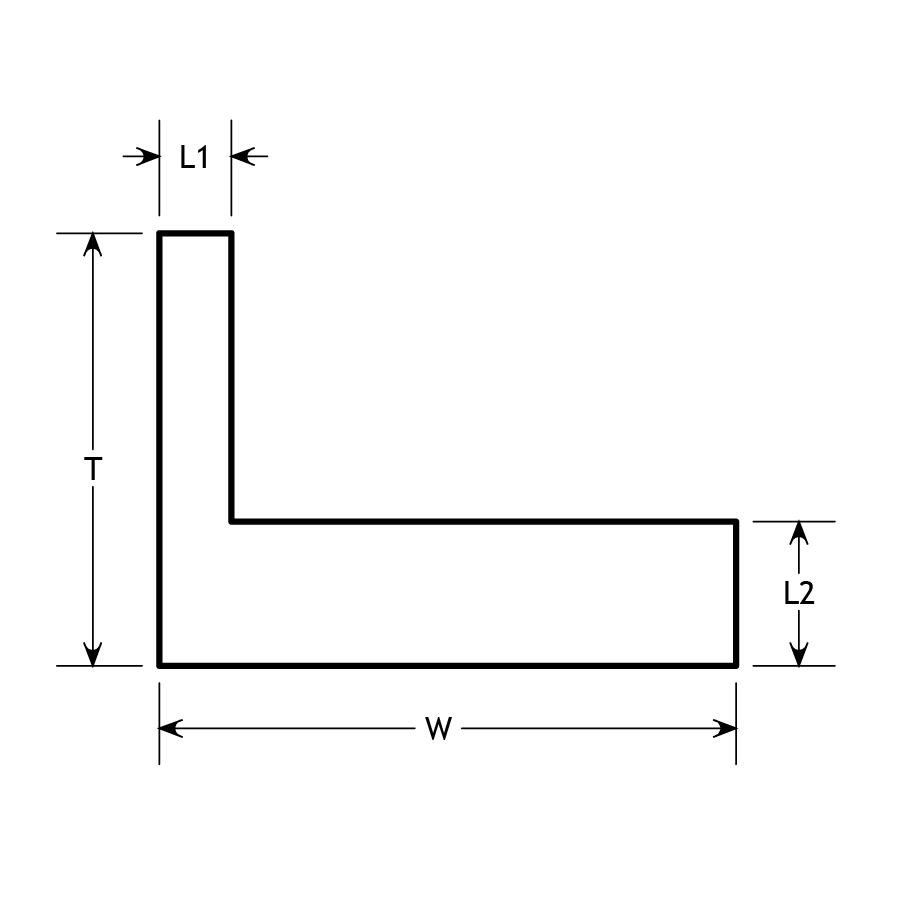

| Part No. | L2 | L1 | W | T | Material Code | Color | Material | Length | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| GAP132002L120S | 5/16" | 1/8" | 1-1/4" | 13/16" | P | GREY | PLUS | 10 Ft | |
| GAP131604L120S | .25" | .125" | 1" | .82" | P | GREY | PLUS | 10 Ft | |
| GAU131604L120SBLUE | .25" | .125" | 1" | .82" | U | BLUE | UHMW | 10 Ft | |
| GAU.20.79 | .12" | .12" | .79" | 2" | U | Green | UHMW | 100 Ft | |
| GAAW.4060.20 | 0.2" | 0.2" | 3.75" | 0.4" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW082.5202 | 0.125" | 0.125" | 2.52" | .5" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW.4040.20 | 0.2" | 0.2" | 2.5" | 0.4" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW063503 | 0.188" | 0.188" | 2.188" | 0.375" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW.4532.20 | 0.2" | 0.2" | 2" | 0.45" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW062403 | 0.188" | 0.188" | 1.5" | 0.375" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW.4224.20 | 0.2" | 0.2" | 1.5" | 0.42" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW0616.20 | 0.2" | 0.2" | 1" | 0.375" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW161602 | 0.125" | 0.125" | 1" | 1" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW161604 | 0.25" | 0.25" | 1" | 1" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW041602 | 0.125" | 0.125" | 1" | 0.25" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW.4514.20 | 0.2" | 0.2" | 0.875" | 0.45" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW0613.20 | 0.2" | 0.2" | 0.813" | 0.375" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW.42.76.20 | 0.2" | 0.2" | 0.76" | 0.42" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW061203 | 0.188" | 0.188" | 0.75" | 0.375" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAAW0612.20 | 0.2" | 0.2" | 0.75" | 0.375" | AW | BLUE | Blue Lube Filled UHMW | 10 Ft | |
| GAP.4060.20 | 0.2" | 0.2" | 3.75" | 0.4" | P | GREY | PLUS | 10 Ft | |
| GAP082.5202 | 0.125" | 0.125" | 2.52" | .5" | P | GREY | PLUS | 10 Ft | |
| GAP.4040.20 | 0.2" | 0.2" | 2.5" | 0.4" | P | GREY | PLUS | 10 Ft | |
| GAP063503 | 0.188" | 0.188" | 2.188" | 0.375" | P | GREY | PLUS | 10 Ft | |
| GAP.4532.20 | 0.2" | 0.2" | 2" | 0.45" | P | GREY | PLUS | 10 Ft | |
| GAP062403 | 0.188" | 0.188" | 1.5" | 0.375" | P | GREY | PLUS | 10 Ft | |
| GAP.4224.20 | 0.2" | 0.2" | 1.5" | 0.42" | P | GREY | PLUS | 10 Ft | |
| GAP0616.20 | 0.2" | 0.2" | 1" | 0.375" | P | GREY | PLUS | 10 Ft | |
| GAP161602 | 0.125" | 0.125" | 1" | 1" | P | GREY | PLUS | 10 Ft | |
| GAP161604 | 0.25" | 0.25" | 1" | 1" | P | GREY | PLUS | 10 Ft | |
| GAP041602 | 0.125" | 0.125" | 1" | 0.25" | P | GREY | PLUS | 10 Ft | |
| GAP.4514.20 | 0.2" | 0.2" | 0.875" | 0.45" | P | GREY | PLUS | 10 Ft | |
| GAP0613.20 | 0.2" | 0.2" | 0.813" | 0.375" | P | GREY | PLUS | 10 Ft | |
| GAP.42.76.20 | 0.2" | 0.2" | 0.76" | 0.42" | P | GREY | PLUS | 10 Ft | |
| GAP061203 | 0.188" | 0.188" | 0.75" | 0.375" | P | GREY | PLUS | 10 Ft | |
| GAP0612.20 | 0.2" | 0.2" | 0.75" | 0.375" | P | GREY | PLUS | 10 Ft | |
| GAU.4060.20 | 0.2" | 0.2" | 3.75" | 0.4" | U | WHITE | UHMW | 10 Ft | |
| GAU484808 | 0.5" | 0.5" | 3" | 3" | U | WHITE | UHMW | 10 Ft | |
| GAU082.5202 | 0.125" | 0.125" | 2.52" | .5" | U | WHITE | UHMW | 10 Ft | |
| GAU.4040.20 | 0.2" | 0.2" | 2.5" | 0.4" | U | WHITE | UHMW | 10 Ft | |
| GAU063503 | 0.188" | 0.188" | 2.188" | 0.375" | U | WHITE | UHMW | 10 Ft | |
| GAU323204 | 0.25" | 0.25" | 2" | 2" | U | WHITE | UHMW | 10 Ft | |
| GAU.4532.20 | 0.2" | 0.2" | 2" | 0.45" | U | WHITE | UHMW | 10 Ft | |
| GAU062403 | 0.188" | 0.188" | 1.5" | 0.375" | U | WHITE | UHMW | 10 Ft | |
| GAU.4224.20 | 0.2" | 0.2" | 1.5" | 0.42" | U | WHITE | UHMW | 10 Ft | |
| GAU242404 | 0.25" | 0.25" | 1.5" | 1.5" | U | WHITE | UHMW | 10 Ft | |
| GAU0616.20 | 0.2" | 0.2" | 1" | 0.375" | U | WHITE | UHMW | 10 Ft | |
| GAU161602 | 0.125" | 0.125" | 1" | 1" | U | WHITE | UHMW | 10 Ft | |
| GAU161604 | 0.25" | 0.25" | 1" | 1" | U | WHITE | UHMW | 10 Ft | |
| GAU041602 | 0.125" | 0.125" | 1" | 0.25" | U | WHITE | UHMW | 10 Ft | |
| GAU.4514.20 | 0.2" | 0.2" | 0.875" | 0.45" | U | WHITE | UHMW | 10 Ft | |
| GAU0613.20 | 0.2" | 0.2" | 0.813" | 0.375" | U | WHITE | UHMW | 10 Ft | |
| GAU.42.76.20 | 0.2" | 0.2" | 0.76" | 0.42" | U | WHITE | UHMW | 10 Ft | |
| GAU061203 | 0.188" | 0.188" | 0.75" | 0.375" | U | WHITE | UHMW | 10 Ft | |
| GAU0612.20 | 0.2" | 0.2" | 0.75" | 0.375" | U | WHITE | UHMW | 10 Ft | |
| GAT323204L120 | 1/4" | 1/4" | 2" | 2" | T | WHITE | PTFE | 10 Ft | |
| GAT242404L120 | 1/4" | 1/4" | 1-1/2" | 1-1/2" | T | WHITE | PTFE | 10 Ft | |
| GAGT161604L144 | 1/4" | 1/4" | 1" | 1" | GT | WHITE | Glass Filled PTFE | 12 Ft | |
| GAT161604L48 | 1/4" | 1/4" | 1" | 1" | T | WHITE | PTFE | 4 Ft |
