Plastic Support Bases
| Part No. | Base Diameter/Length | Fits | Overall Length | Thread Size | Material Code | Color | Hole Type | Material | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| PT3L2.0M16 | 19.29mm | 2" Pipe | 19.29mm | 16mm | N/A | Black | Plastic Support Bases | Reinforced Polyamide | |
| PT3LT2.0M16 | 19.29mm | 2" Tube | 19.29mm | 16mm | N/A | Black | Plastic Support Bases | Reinforced Polyamide | |

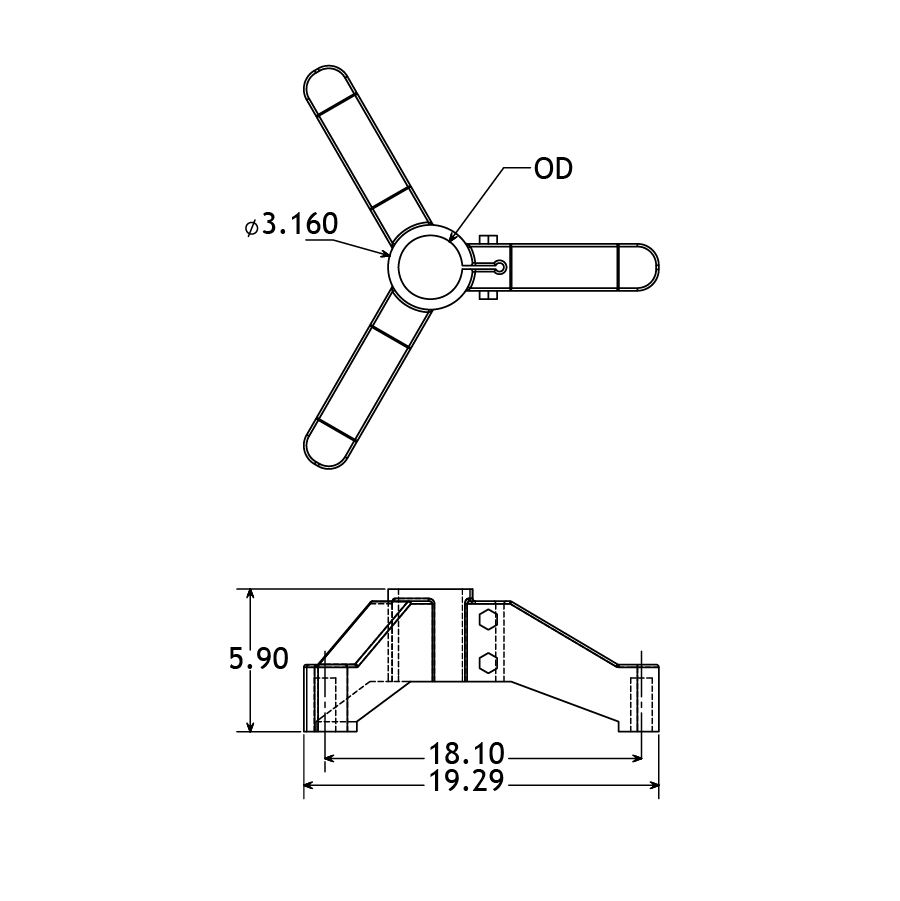

| PT3L1.50M16 | 19.29mm | 1-1/2" Pipe | 19.29mm | 16mm | N/A | Black | Plastic Support Bases | Reinforced Polyamide | |
| PCT2L2.0M16 | 17.04mm | 2" Pipe | 17.04mm | 16mm | N/A | Black | Plastic Support Bases | Reinforced Polyamide | |
| PCT2LT2.0M16 | 17.04mm | 2" Tube | 17.04mm | 16mm | N/A | Black | Plastic Support Bases | Reinforced Polyamide | |

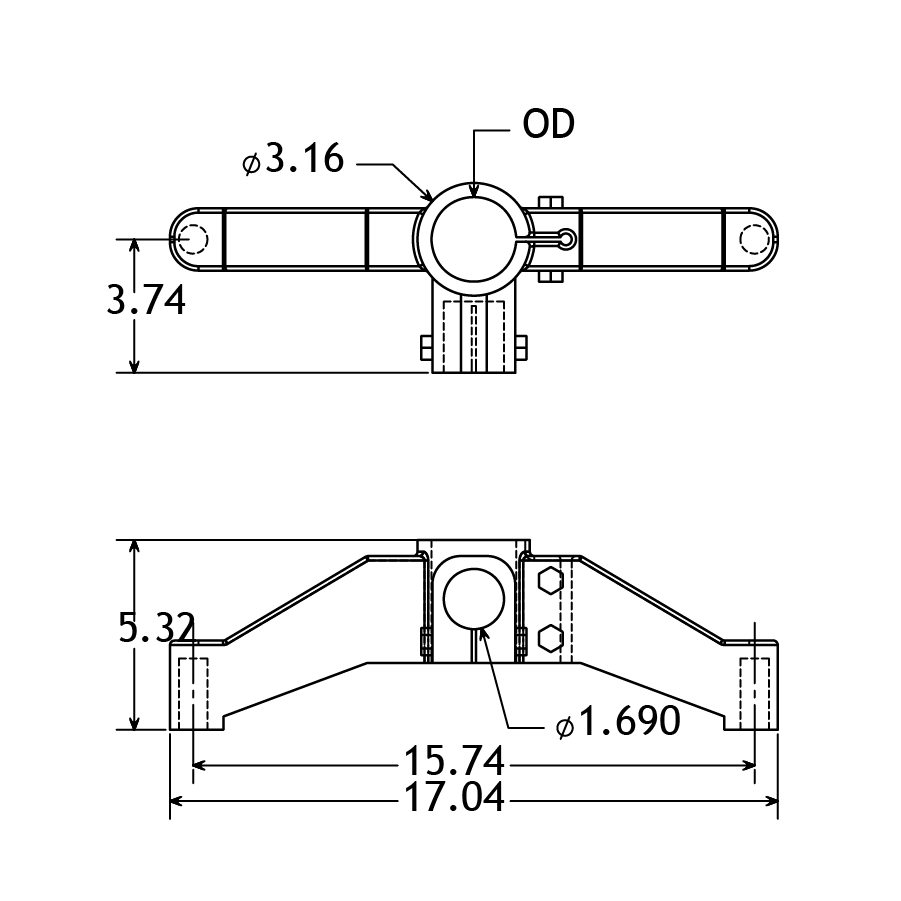

| PCT2L1.50M16 | 17.04mm | 1-1/2" Pipe | 17.04mm | 16mm | N/A | Black | Plastic Support Bases | Reinforced Polyamide | |
| PB2L2.0M16 | 17.04mm | 2" Pipe | 17.04mm | 16mm | N/A | Black | Plastic Support Bases | Reinforced Polyamide | |
| PB2LT2.0M16 | 17.04mm | 2" Tube | 17.04mm | 16mm | N/A | Black | Plastic Support Bases | Reinforced Polyamide | |

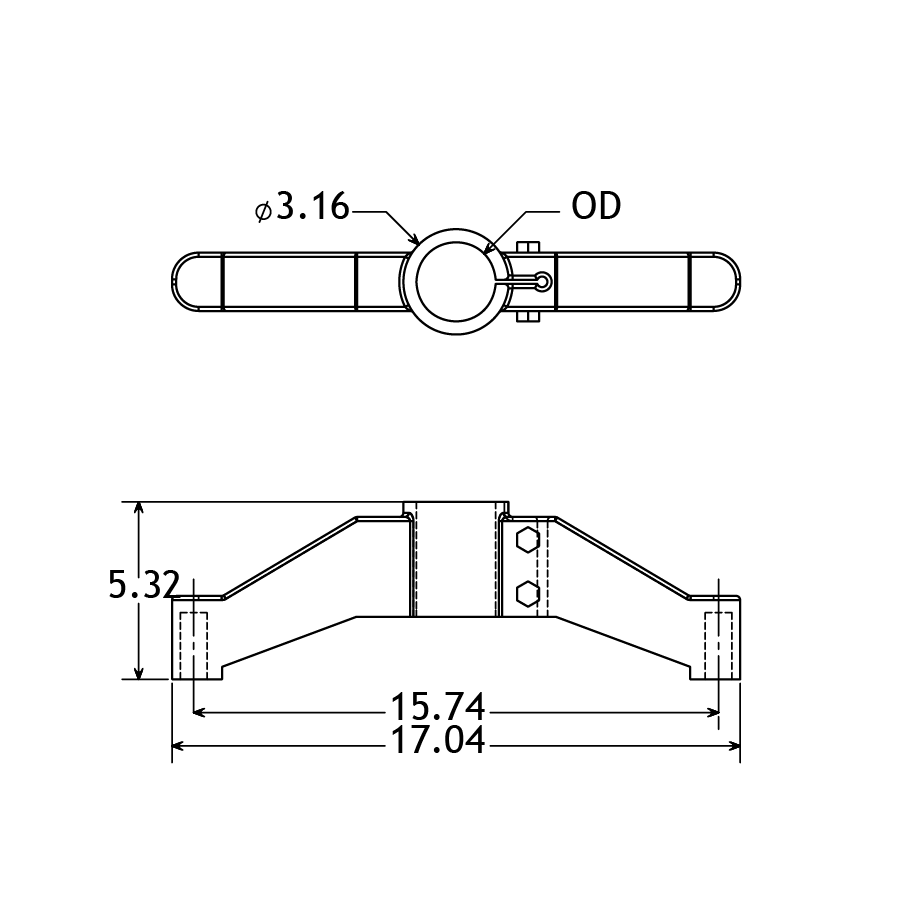

| PB2L1.50M16 | 17.04mm | 1-1/2" Pipe | 17.04mm | 16mm | N/A | Black | Plastic Support Bases | Reinforced Polyamide |
