Rail Clamps
| Part No. | # of Rails Clamped | Pcs | Bolt Suitable With 2 | Bolt Suitable With | Bolt Length | Hole Type | Threading | Material | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|
| CSS20MM | 1 | 1 | N/A | N/A | 20mm | N/A | M6 | Stainless Steel | ||
| CSS15MM | 1 | 1 | N/A | N/A | 15mm | N/A | M8 | Stainless Steel | ||
| CSS14MM | 1 | 1 | N/A | N/A | 14mm | N/A | M6 | Stainless Steel | ||
| CSS10MM | 1 | 1 | N/A | N/A | 10mm | N/A | M6 | Stainless Steel | ||
| CSSTWOPC1/420T | 1 | 2 | N/A | N/A | .70" | N/A | 1/4"-20 | Stainless Steel | ||
| CSS32MMTWOPC. | 1 | 2 | N/A | N/A | 19mm | N/A | M8 | Stainless Steel | ||
| CSS19MMTWOPC. | 1 | 2 | N/A | N/A | 19mm | N/A | M8 | Stainless Steel | ||
| CSS16MMTWOPC. | 1 | 2 | N/A | N/A | 16mm | N/A | M8 | Stainless Steel | ||
| CSS11/4TWOPC. | 1 | 2 | N/A | N/A | 1-1/4" | N/A | 5/16" | Stainless Steel | ||
| CSS1TWOPC. | 1 | 2 | N/A | N/A | 1" | N/A | 5/16" | Stainless Steel | ||
| CSS3/4TWOPC. | 1 | 2 | N/A | N/A | 3/4" | N/A | 5/16" | Stainless Steel | ||
| CSS5/8TWOPC. | 1 | 2 | N/A | N/A | 5/8" | N/A | 5/16" | Stainless Steel | ||

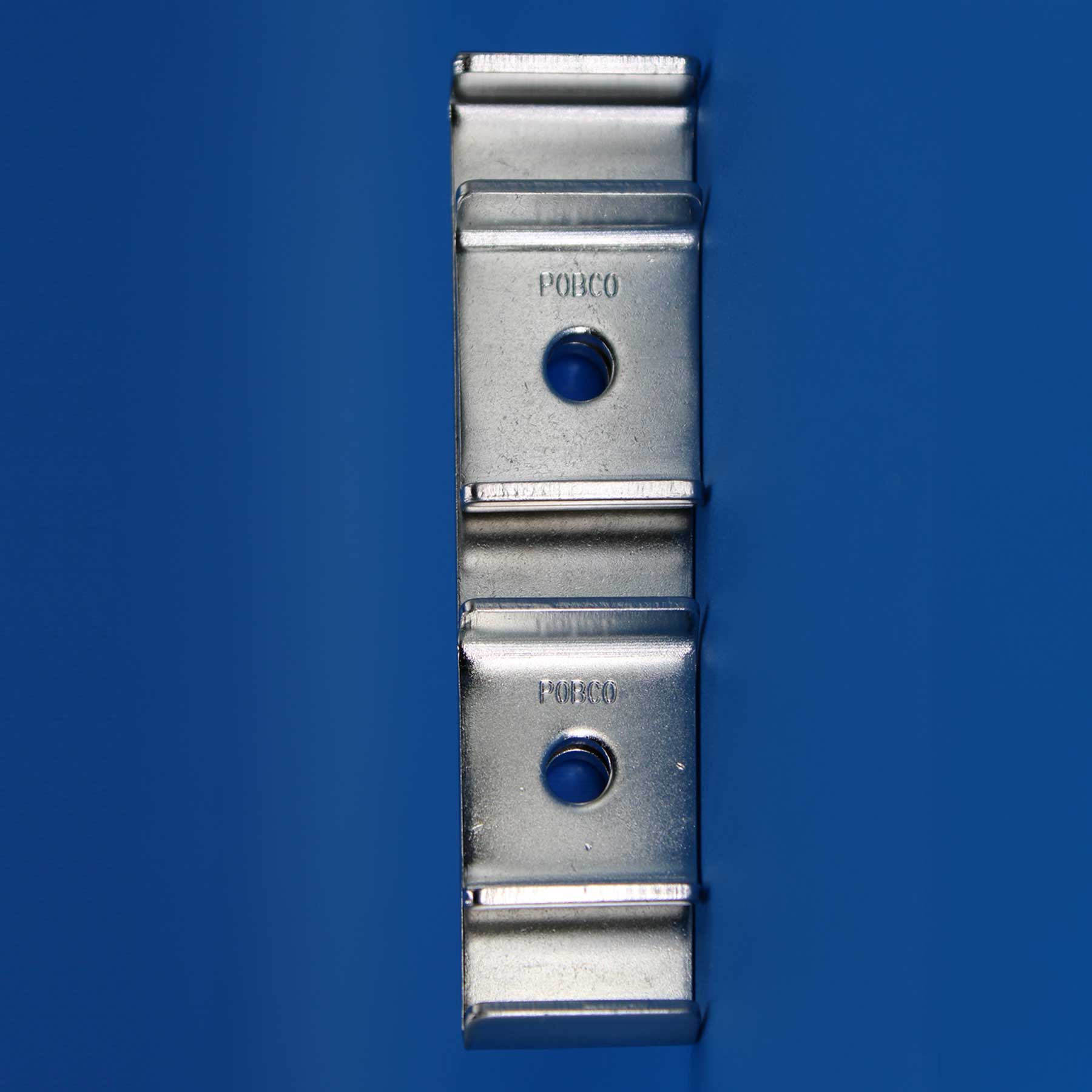

| CSSTRIPLE | 3 | 3 | M10 | 3/8" | N/A | Square | N/A | Stianless Steel 12 Ga. | ||

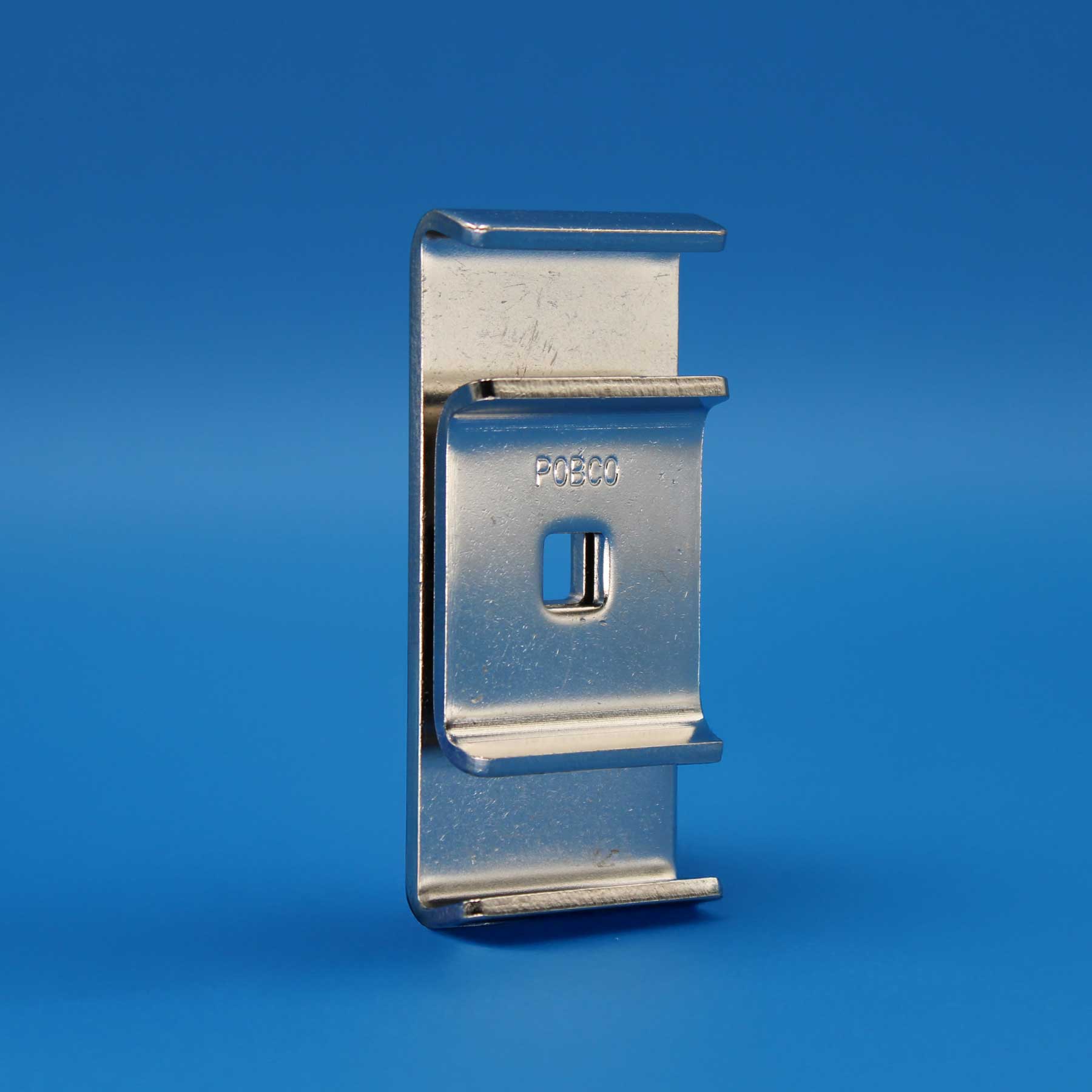

| CSSDOUBLESQ | 2 | 2 | M10 | 3/8" | N/A | Square | N/A | Stianless Steel 12 Ga. | ||

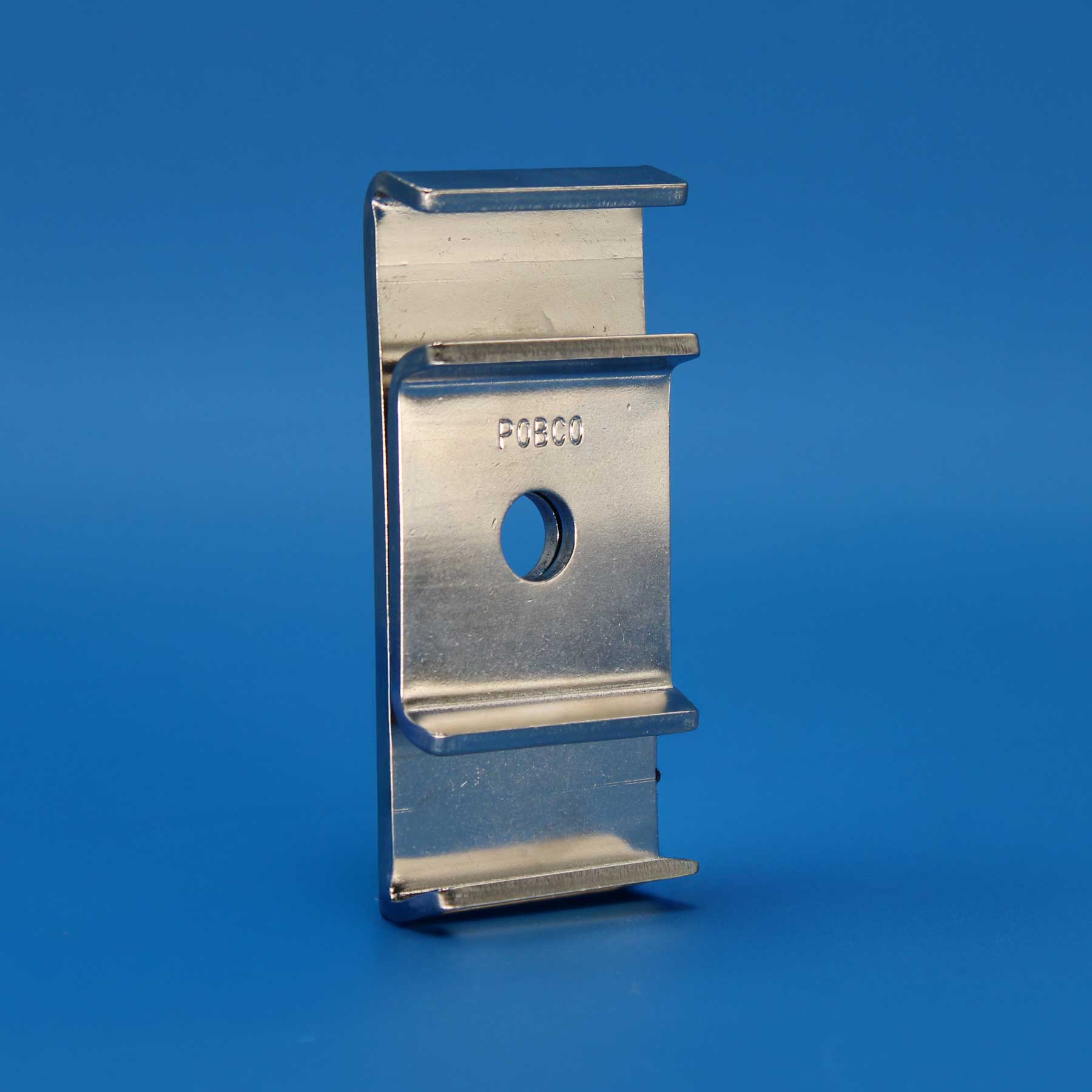

| CSSDOUBLE | 2 | 2 | M10 | 3/8" | N/A | Round | N/A | Stianless Steel 12 Ga. | ||

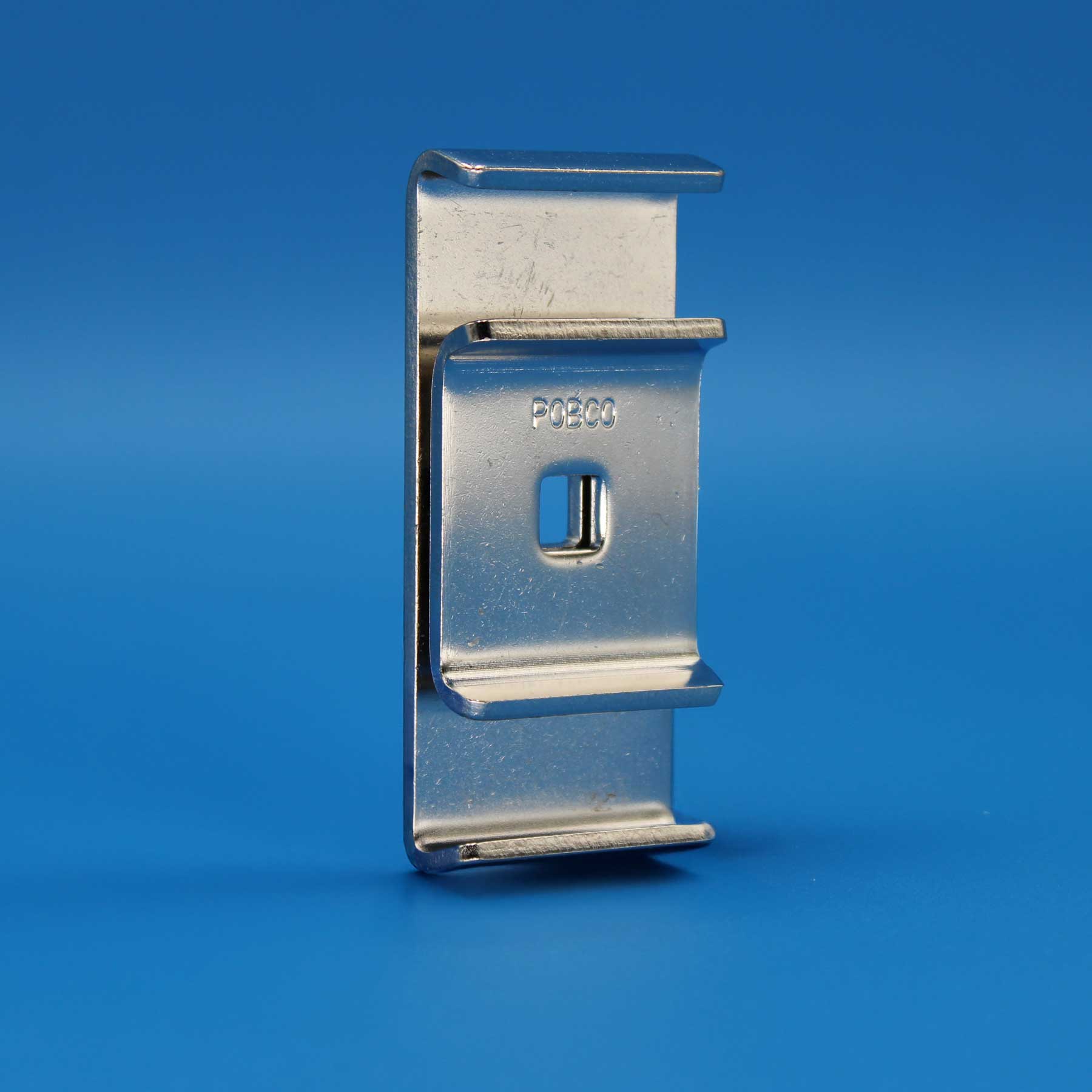

| CSS2424SQ | 1 | 2 | M8 | 5/16" | N/A | Square | N/A | Stainless Steel 14. Ga | ||

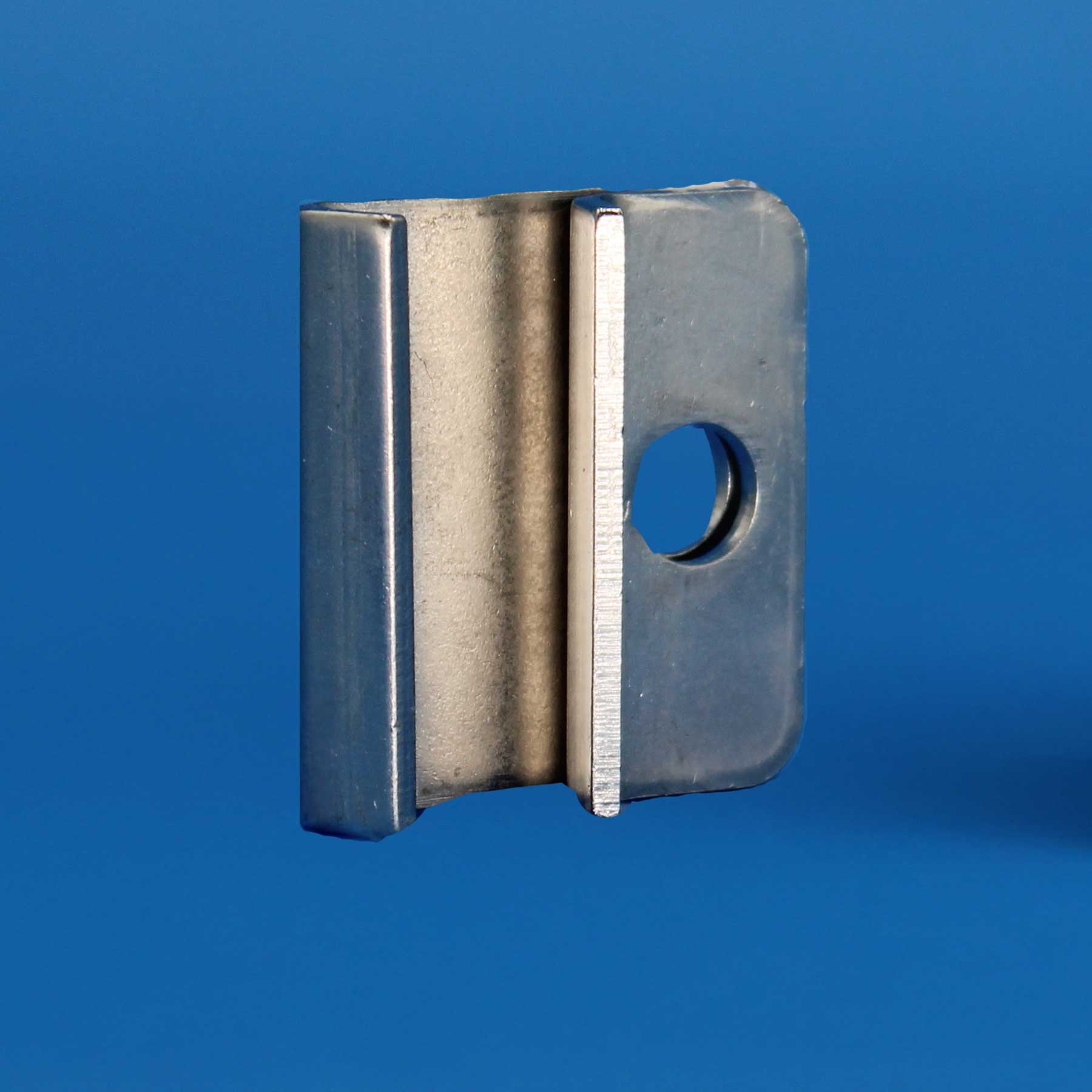

| CSS2424 | 1 | 2 | M8 | 5/16" | N/A | Round | N/A | Stainless Steel 14. Ga |
