Support Heads Side Mounting Brackets & Cross Ties
| Part No. | Base Diameter/Length | Fits | Overall Length | Thread Size | Material Code | Color | Hole Type | Material | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| PP80645 | 85mm | 1-1/2" Pipe | 141mm | M8 Bolt | N/A | Black | Cross Tie | Reinforced Polyamide | |
| PP80643 | 85mm | 1-1/2" Pipe | 141mm | M8 Bolt | N/A | Black | Cross Tie | Reinforced Polyamide | |
| PP80641 | 85mm | 2" Pipe | 141mm | M8 Bolt | N/A | Black | Cross Tie | Reinforced Polyamide | |
| PP80639 | 85mm | 2" Pipe | 141mm | M8 Bolt | N/A | Black | Cross Tie | Reinforced Polyamide | |
| PP80795 | 111mm | 1.66" Tube | 190mm | M10 Bolt | N/A | Black | Side Mounting Bracket | Reinforced Polyamide | |
| PP80793 | 111mm | 1-1/2" Pipe | 190mm | M10 Bolt | N/A | Black | Side Mounting Bracket | Reinforced Polyamide | |
| PP83211 | 111mm | 2" Tube | 190mm | M10 Bolt | N/A | Black | Side Mounting Bracket | Reinforced Polyamide | |
| PP80791 | 111mm | 2" Pipe | 190mm | M10 Bolt | N/A | Black | Side Mounting Bracket | Reinforced Polyamide | |
| PP80649 | 65mm | 1-1/2" Pipe | 172mm | M10 Bolt | N/A | Black | Side Mounting Bracket | Reinforced Polyamide | |
| PP80769 | 139mm | 1.66" Tube | 85mm | M10 Bolt | N/A | Black | Support Head | Reinforced Polyamide | |
| PP80767 | 139mm | 1-1/2" Pipe | 85mm | M10 Bolt | N/A | Black | Support Head | Reinforced Polyamide | |
| PP82073 | 139mm | 2" Tube | 85mm | M10 Bolt | N/A | Black | Support Head | Reinforced Polyamide | |
| PP80765 | 139mm | 1-1/2" Pipe | 85mm | M10 Bolt | N/A | Black | Support Head | Reinforced Polyamide | |
| PP83110 | 96mm | 2" Tube | 80mm | M10 Bolt | N/A | Black | Support Head | Reinforced Polyamide | |

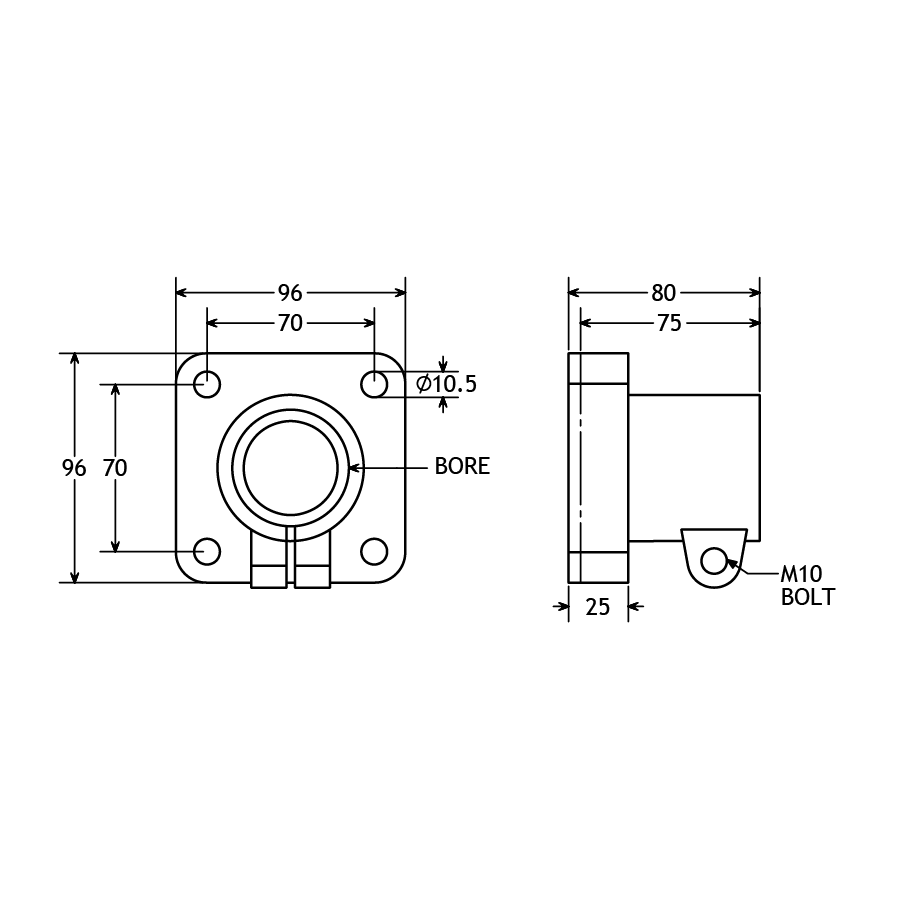

| PP80651 | 96mm | 1-1/2" Pipe | 80mm | M10 Bolt | N/A | Black | Support Head | Reinforced Polyamide |
